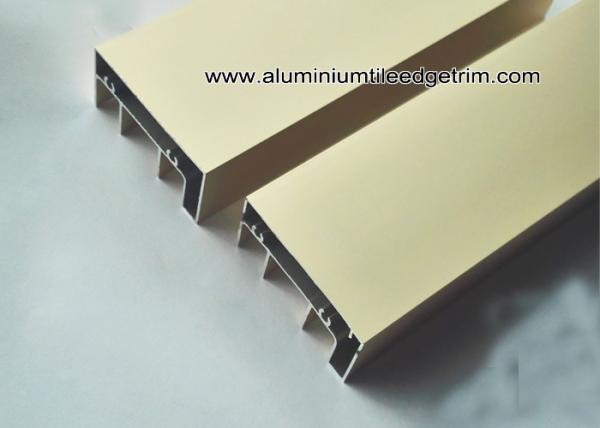

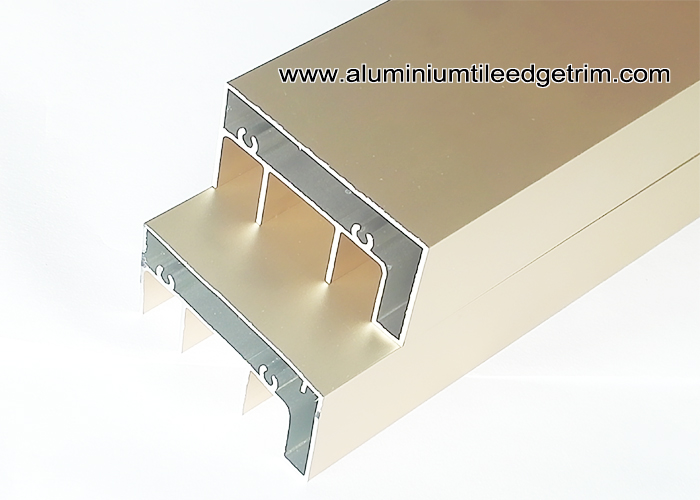

Anodised Gold Aluminum Extrusion Sliding Door Track / Channel
Product Description
Aluminium sliding door track are extremely popular and can be seen in most flats and independent homes. These aluminium windows / doors are designed to open horizontally and glide horizontally along the window or door channels. They are often used as a means to extend the room’s ambiance and to brighten up the room with natural light during the day time. It also at the same time provides unobstructed access to views both on the inside and the outside. On top of it they also add to the beauty quotient of your home. Aluminium track extrusions for Sliding Doors & Windows are perfect for houses facing a space crunch as even the sliding doors take much little space while opening.
Specifications of Aluminum Door Frame Profiles:
1) aluminum profile material: AL6063 or 6061 or 6005 or as per customers' need.
2) Temper:T4,T5,T6
3) Surface Treatment: mill finish(without treatment),anodizing, electrophoresis, power coating (any color),
fluorocarbon coating(PVDF coating),wood grain painting, drawbench, sand blasting etc.
4) Length: the maximum is 7 meters; usually 5.5 to 5.8 meters.
5) Packing: Kraft paper, carton box, protection foam heat contracted plastic film, poly-bag, etc.
6) Certificates:ISO 9001:2000,ISO 14001:2004
| Aluminium Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.49 | 0.1 | 0.1 | 0.1 |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.6-1.2 | 0.04-0.35 | 0.25 | 0.15 |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | 0.05 | 0.15 | 0.1 |
Aluminum extrusion door frame section Process:
Aluminum Extrusion Profiles process:It will be passed through a number of mechanical processes that are designed to give the metal its desired shape. These processes include: rolling, drawing, forging, spinning, piercing and extrusion.
Regardless of whether aluminium has been found in its molten or solid form, the manufacturer will then pass it through either a hot working or cold working process to prepare it for their customers. When using the hot working process (the most popular of the two), a billet will be heated to a temperature of over 79 degrees Celsius, which will allow the aluminium to be easily distorted and placed into its desired shape.
The reason for the popularity of the hot working process over the cold working one can be fully realized when you compare aluminium extrusion to squeezing toothpaste out of its tube. It is much easier to extrude the metal when it is malleable, meaning that it must have been heated to a certain temperature.
Finally, the aluminium will pass through an extrusion and drawing process that runs almost parallel to each other. This is the final step in the whole extrusion process and is the step that gives the metal its entire shape.
You can also get these advanced conditions below:
More than 400 types moulds are adopted, can meet almost all kinds of design in South American market.
Good Quality Control, CE, ISO certificates approved.
Fast Delivery, Only 15 Days which is not easy achieve for other factory in China.
Expert export Package, perfect protection, length could reach to 5.995m, full loaded and minimized the waste space of 20GP and 40HQ container.
Production Process:
Aluminum ingot -> Aluminum Rod -> Homogeneous processing -> Extrusion->Aging Furnace->Anodizing->Electrophoresis
